Songtai 80x80 ceramic heat plate

  • 1 - 4 Pieces
    $10.00
  • 5 - 9 Pieces
    $9.00
  • 10 - 99 Pieces
    $8.00
  • >=100 Pieces
    $6.00
Model Number:
245*60mm 245*80mm 122*122mm 122*60mm 80*80mm 60*60mm
Power(W):
100W 200W 300W 400W 500W 600W 800W 1000W
Lead Time:
Quantity(Pieces) 1 - 10 11 - 50 >50
Est. Time(days) 7 10 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Samples:
$8.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Infrared Heater
Power Source:
Electric
Place of Origin:
Jiangsu, China
Brand Name:
Songtai
Dimension(L*W*H):
packed
Weight:
0.3kg
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support, Overseas service center available
Working Temperature Range:
800 ℃
Key Selling Points:
High-accuracy
heating wire:
Ni80Cr20
shape:
curve/flat/hollow
temperature:
300°C to 700°C
radiation distance:
100 mm to 250 mm
Insulation material:
MgO
Power:
125-1500w
Useful wave length:
2-10 microns
Voltages:
24V/48V/120V/230V/380V/180V
colour:
white/black/yellow
Voltage:
220v and can be customized
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
10 pcs one bag, 20 bags one carton for Songtai 80x80 ceramic heat plate
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 10 11 - 50 >50
Est. Time(days) 7 10 To be negotiated
Video Description
Related products

Thermocouple

Thermocouple wire

High temperture plug

Tubular heater

Infrared heater

Silicone heater

Contact US
Pls click below "Send" to get the free sample and quotation.

Ceramic Heater

Ceramic infrared heat elements are efficient, robust heaters which provide long wave infrared radiation. The ceramic heaters and infrared heaters are used in a diverse range of industrial and engineering applications such as thermoforming heaters, packaging and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.

Material
High Quality Ceramic
Max operating temp
800ºC
Voltage
12V-480V or as customer's demand
Shape
Flat/Curved/Bulb
Resistance wire element
High Quality Nickel chrome wire
Max wattage
6.5w/CM2
Useful wavelength range
2 to 10 µm
Cold areas
Depends on length and diameter 5-25mm
Internal thermocouple
K or J type
Recommended radiation distance
100 mm to 200 mm
Detailed Images

Specifications


Insulator: High thermal shock resistance ceramic material
Resistance wire: High quality Ni80Cr20
Glaze Layer: good radiation metal oxide materials with moderate additives to increase radiation intensity and enhance the suitability of the glaze.

Features


1.Long life - have a long service life due to an embedded heating coil
2.Very accurate – can be controlled with an accuracy of 1°C due to an integrated thermocouple.
3.Suitable for food sector - The surface is clean and does not oxidize.
4.Suit various applications - are available in many sizes, wattages and operating voltages.

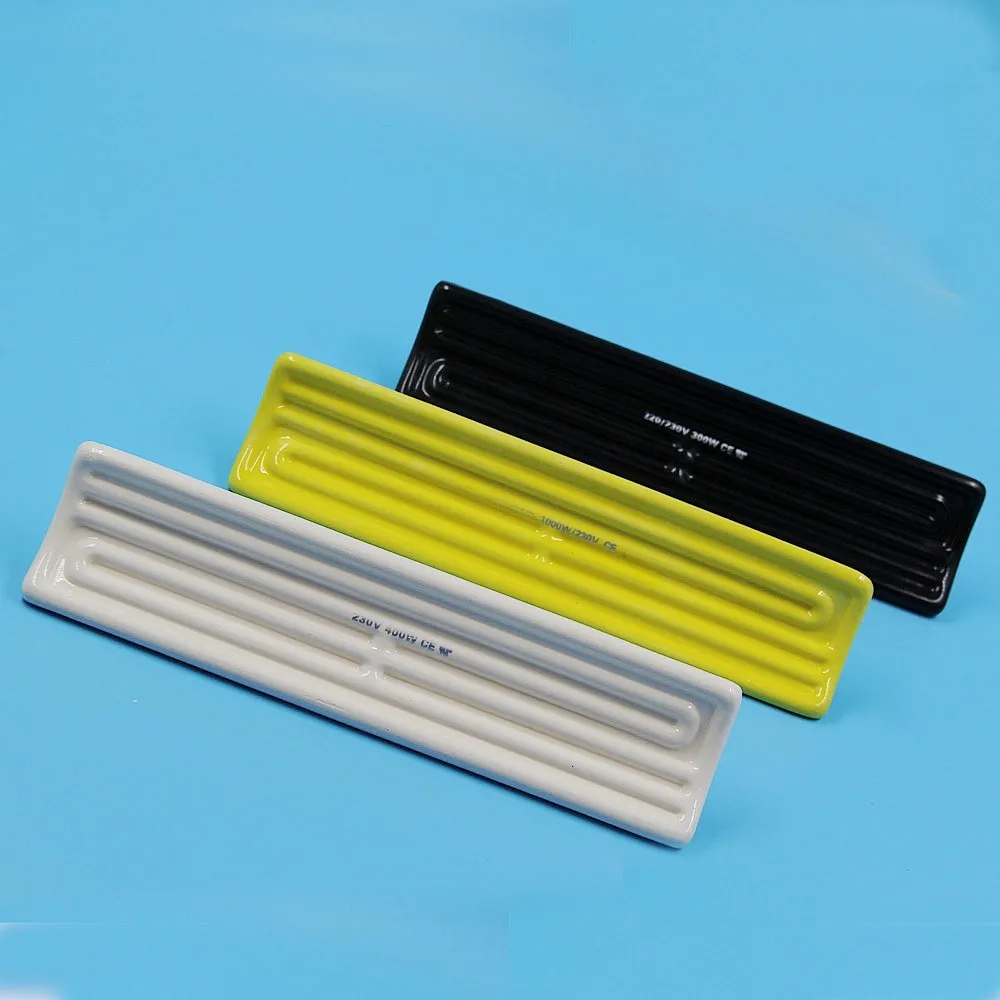

Size:245*60mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-1000W
colour :white, yellow, black, etc
TC :Optional, K or J Type

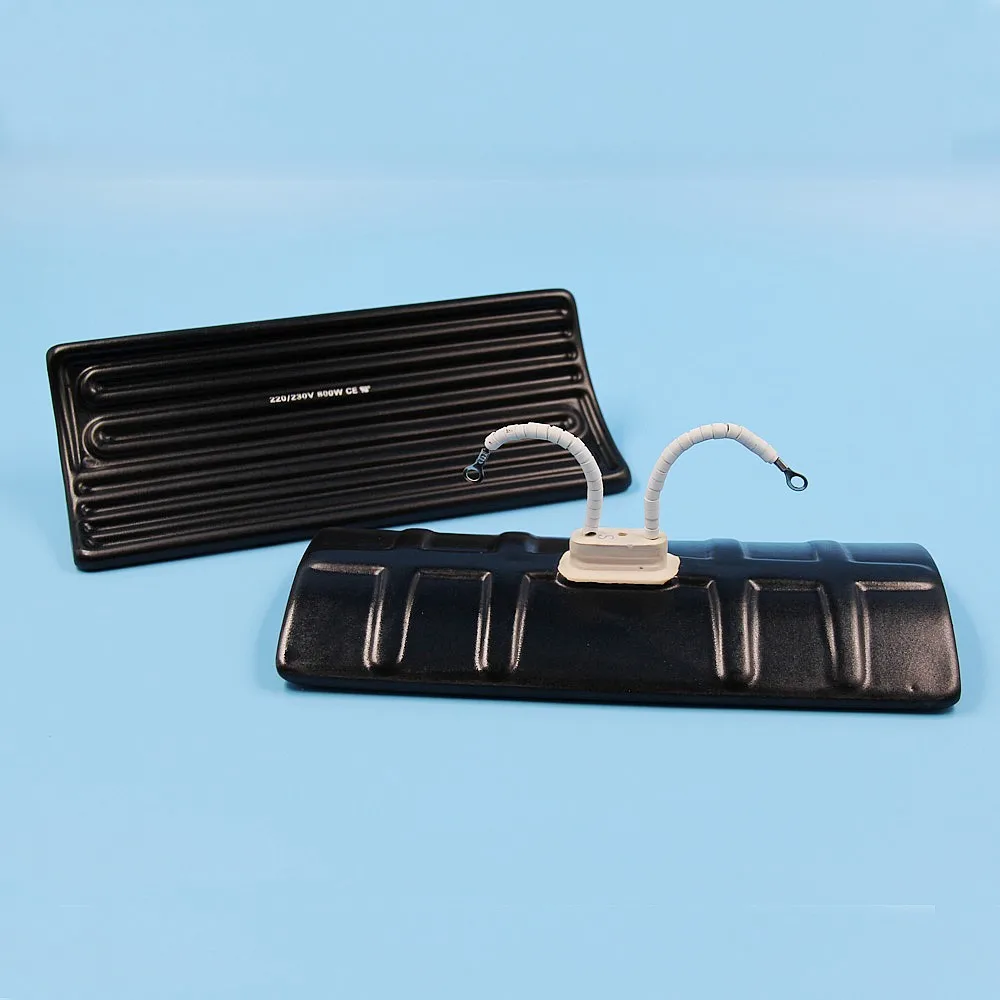

Size:245*80mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-1000W
colour :white, yellow, black, etc
TC :Optional, K or J Type

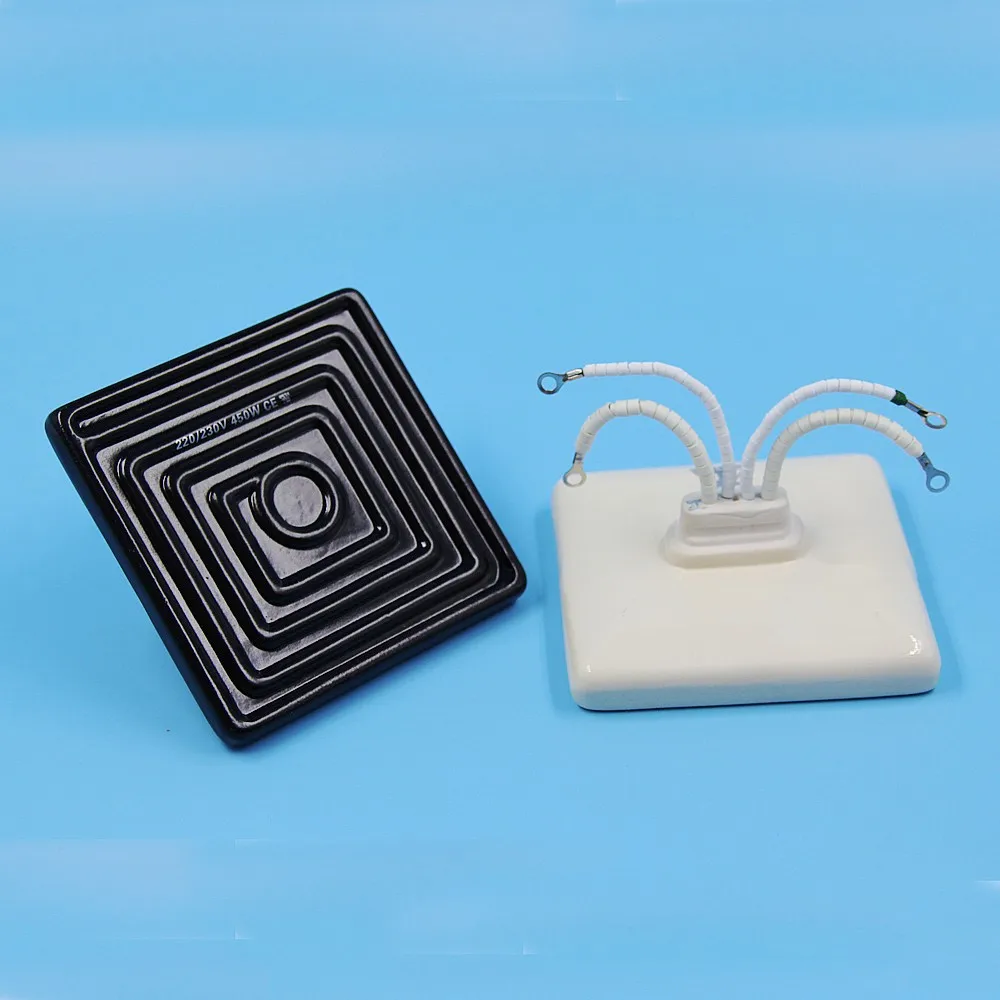

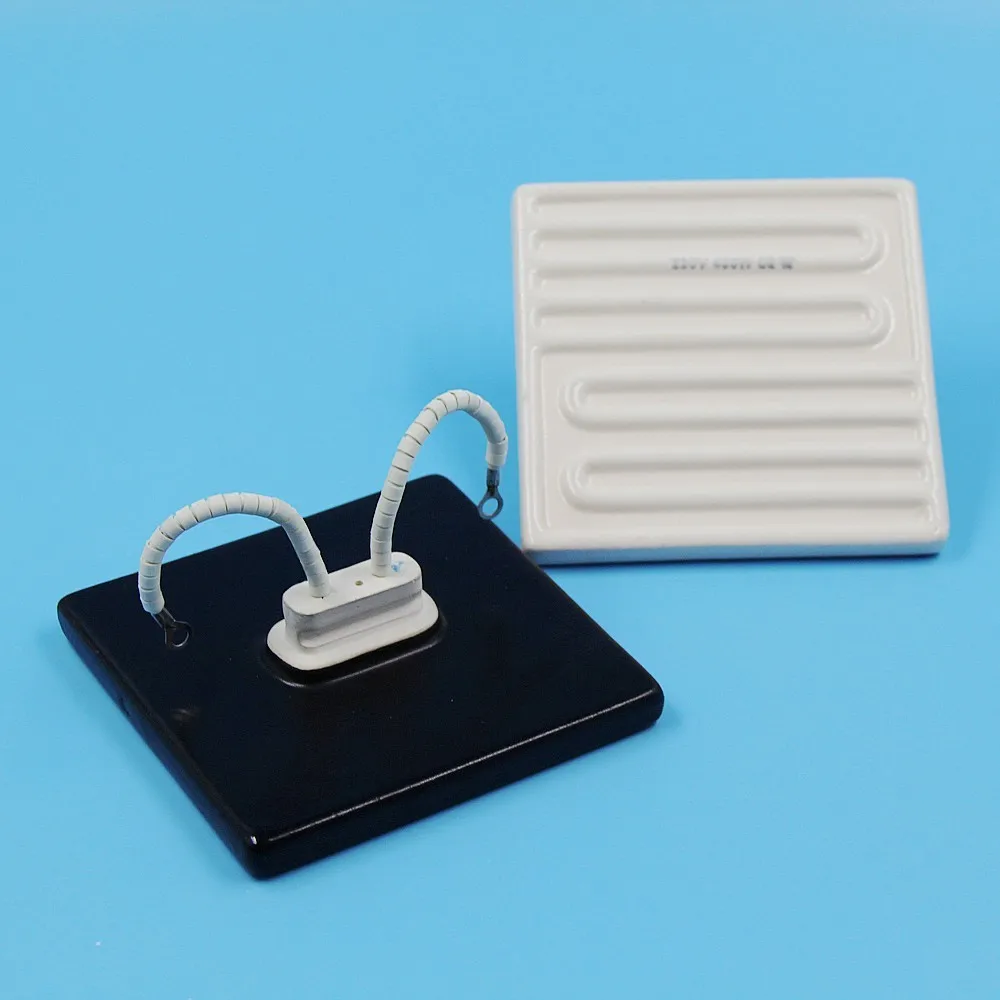

Size:122*122mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-750W
colour :white, yellow, black, etc
TC :Optional, K or J Type

Size:122*60mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-500W
colour :white, yellow, black, etc
TC :Optional, K or J Type

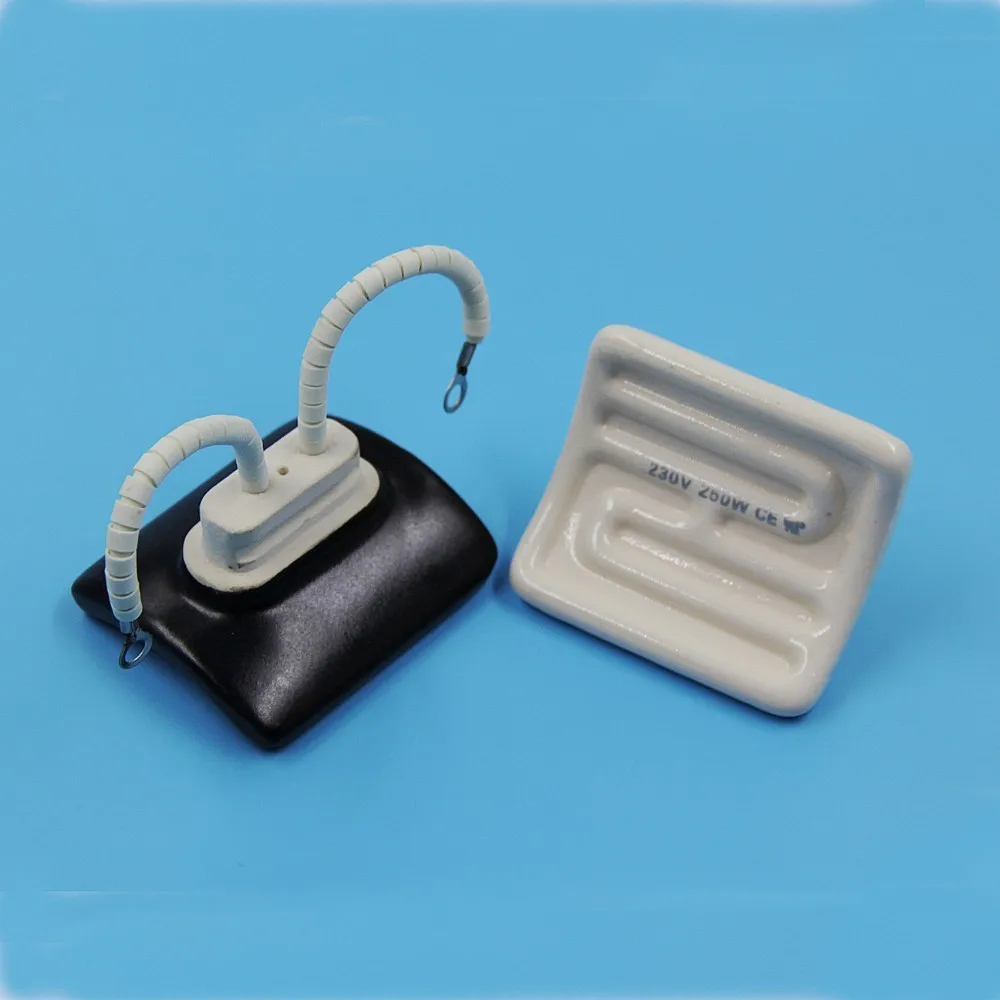

Size:80*80mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-250W
colour :white, yellow, black, etc
TC :Optional, K or J Type

Size:60*60mm
Type:Trough, Hollow and Flat
Vottage :120/220/230/240/480V
Wattage :125-250W
colour :white, yellow, black, etc
TC :Optional, K or J Type

How to order?  Pls provide this informations

1.The ceramic heater type: Trough, Hollow and Flat
2.The ceramic heater size:245*60mm,245*80mm and other can be customized.
3.Vottage :380V,240V, 220V,200V,110V and other can be customized.
4.Wattage :125W,150W,200W,250W,300W and other can be customized.

Product Applications

Plastics:                                                            Textiles:                                                        Food:
• Thermoforming                                             • Drying dyed/printed fabric                      • Warming
• Vacuum forming                                           • Curing latex coatings                               • Baking
• Curing extruded parts
• Drying Ceramic                                              Ceramic:                                                       Paint:
• Laminating                                                      • Drying glazes/pigments                          • Drying lacquers/finishes
                                                                                                                                                   • Baking lacquers/finishes
Electronics:                                                       Thin Film Deposition:
• Preheat PCBs                                                 • Vacuum coating substrates                   Packaging:
• IR reflow ovens for SMT                                                                                                      • Heat shrink
                                                                            Wood/Furniture:                                          • Forming
Paper:                                                                • Heating bonded/painted/plastic
• Speed drying coated paper                         coated components                                    Printing:
• Adhesive activation                                     • Drying same components                         • Ink drying
